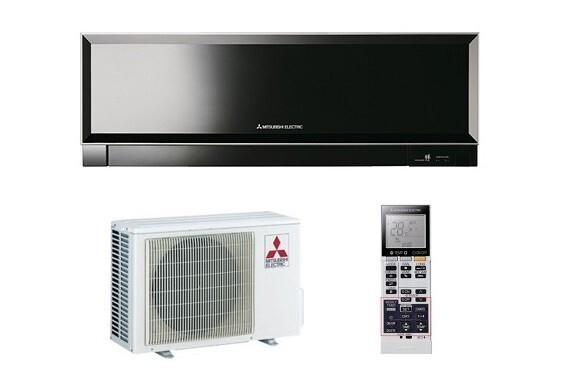

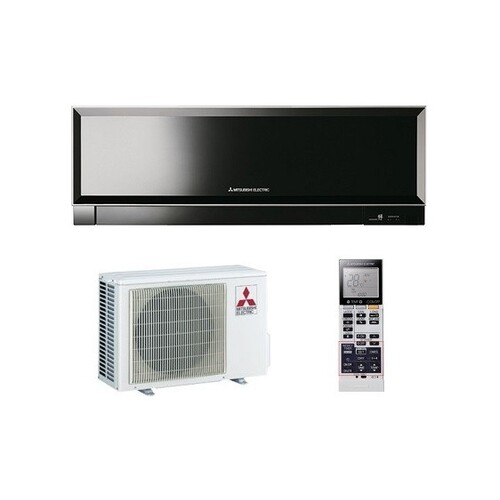

Signature Series€¦They€™re durable easy to use slim and powerful and all packaged up within a stunning design. Both Indoor and Outdoor Units are subjected to rigorous durability testing which further improves design. The front panel is easily detached making cleaning a breeze.

Features

  • 3.5kW cooling capacity
  • 4kW heating capacity
  • Quiet operation
  • Weekly timer
  • Nano platinum filter
  • Stylish design matches any room décor

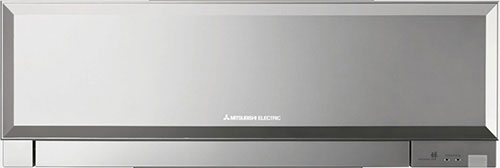

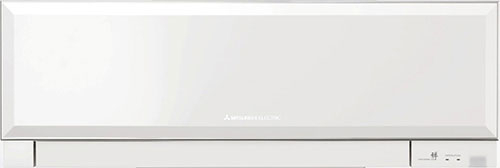

  • Colour Options: Black Silver or White

Specifications

  • Power Supply: 230V Single 50Hz Outdoor unit power supply

Cooling

  • Capacity (Min-Rated-Max) kW: 1.4 - 3.5 - 4.0
  • Total (Min-Rated-Max) kW: 0.210 - 0.910 - 1.500
  • AEER/EER: 3.83/3.85
  • Star Rating: 3
  • Running Current (Rated) A: 4.2
  • Sound Pressure IN dB(A): 21-24-29-36-42
  • Level OUT dB(A): 49(63)
  • Air Volume (IN) L/S: 67-175

Heating

  • Capacity (Min-Rated-Max) kW: 1.8 - 4.0 - 5.5
  • Total Input (Min-Rated-Max) kW: 0.280 - 0.955 - 1.530
  • ACOP/COP: 4.17/4.19
  • Star Rating: 4
  • Running Current A: 4.4
  • Sound Pressure IN dB(A): 21-24-30-38-46
  • Level OUT dB(A): 50 (63)
  • Air Volume (IN) L/S: 67-212
  • Starting Current A: 4.4
  • Max. Running Current A: 8.5
  • Input: Cooling: 14 Heating: 31
  • Breaker Size A: 10
  • Ext. Piping: 9.52/6.35

Guaranteed Operating Range

  • Cooling °C: -10 ~ 46
  • Heating °C: -15 ~ 24

Dimensions

  • Indoor (W x H x D)mm = 898 x 299 x 195mm 11.5kg
  • Outdoor (W x H x D)mm = 800 x 550 x 285mm 35kg

Warranty

  • 5 years manufacturer warranty

*This item can only be delivered within Sydney Metro

SKU MSZEF35VE
Barcode # 9316524152530
Brand Mitsubishi Electric
