Key Features

• Built-in Wi-Fi Smart Control
• Energy Display & Monitoring
• Active Energy Control
• Plasmaster Ioniser Plus

Performance

• Cooling Capacity (Rating): 7.10 kW
• Heating Capacity (Rating): 8.00 kW
• Power Input: Cooling: 1890W Heating: 1990W
• Rated Running Current: Cooling: 8.40A Heating: 8.90A
• AEER Cooling: 3.75 W/W
• ACOP Heating: 4.02 W/W
• Air Flow Rate (Indoor Max): 383 L/s
• Indoor Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/M/L/S): 49 / 44 / 40 / 30 (Actual installed noise levels vary depending on the installed location)
• Outdoor Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/M/L/S): 66 (Actual installed noise levels vary depending on the installed location)
• Moisture Removal (l/h): 1.90

Model

• Set: WH24SL-18

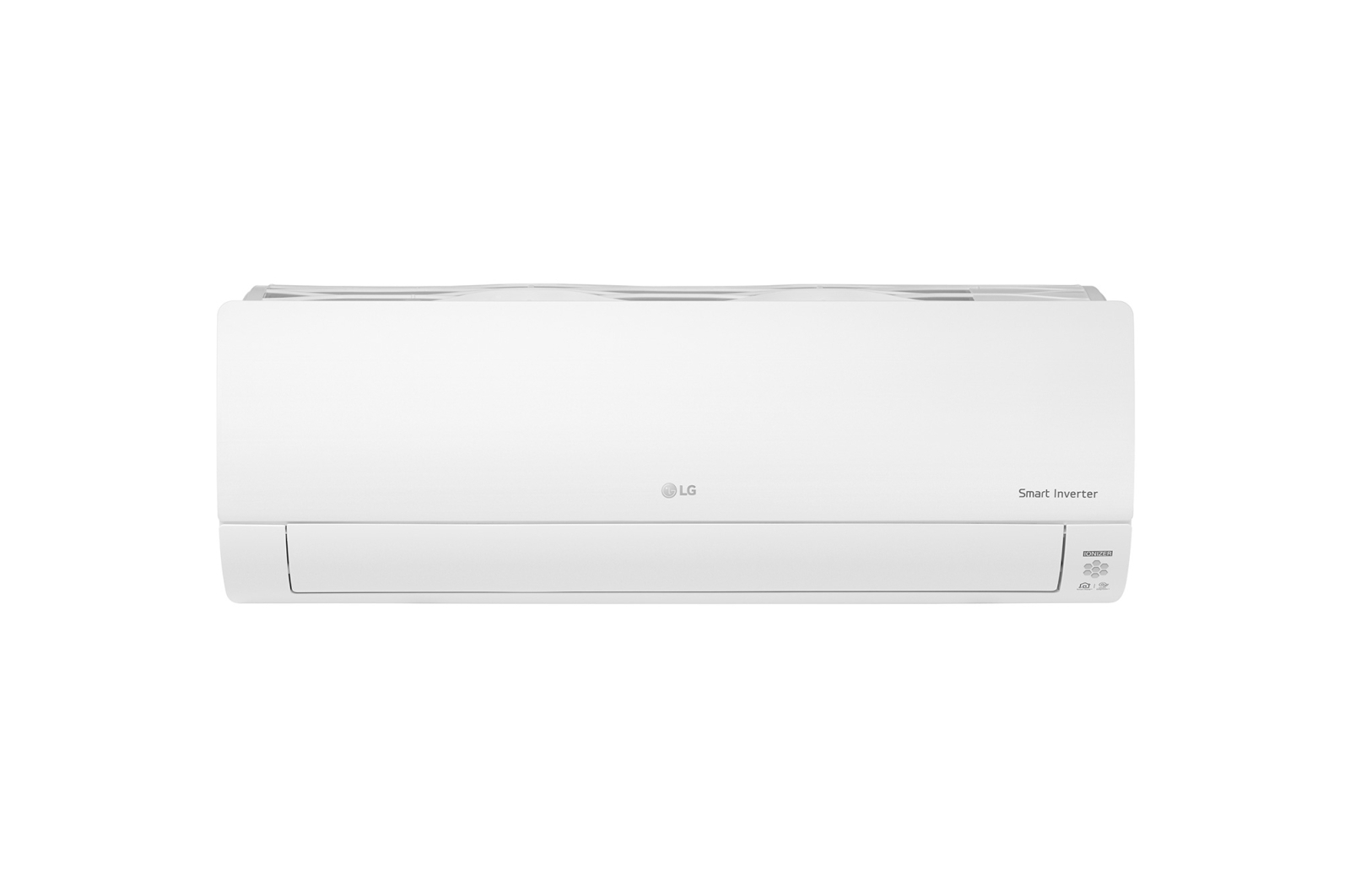

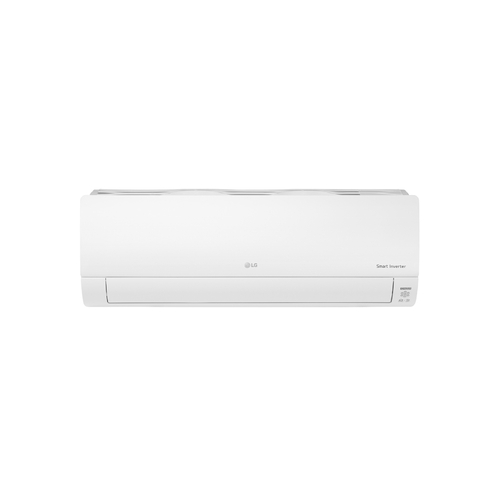

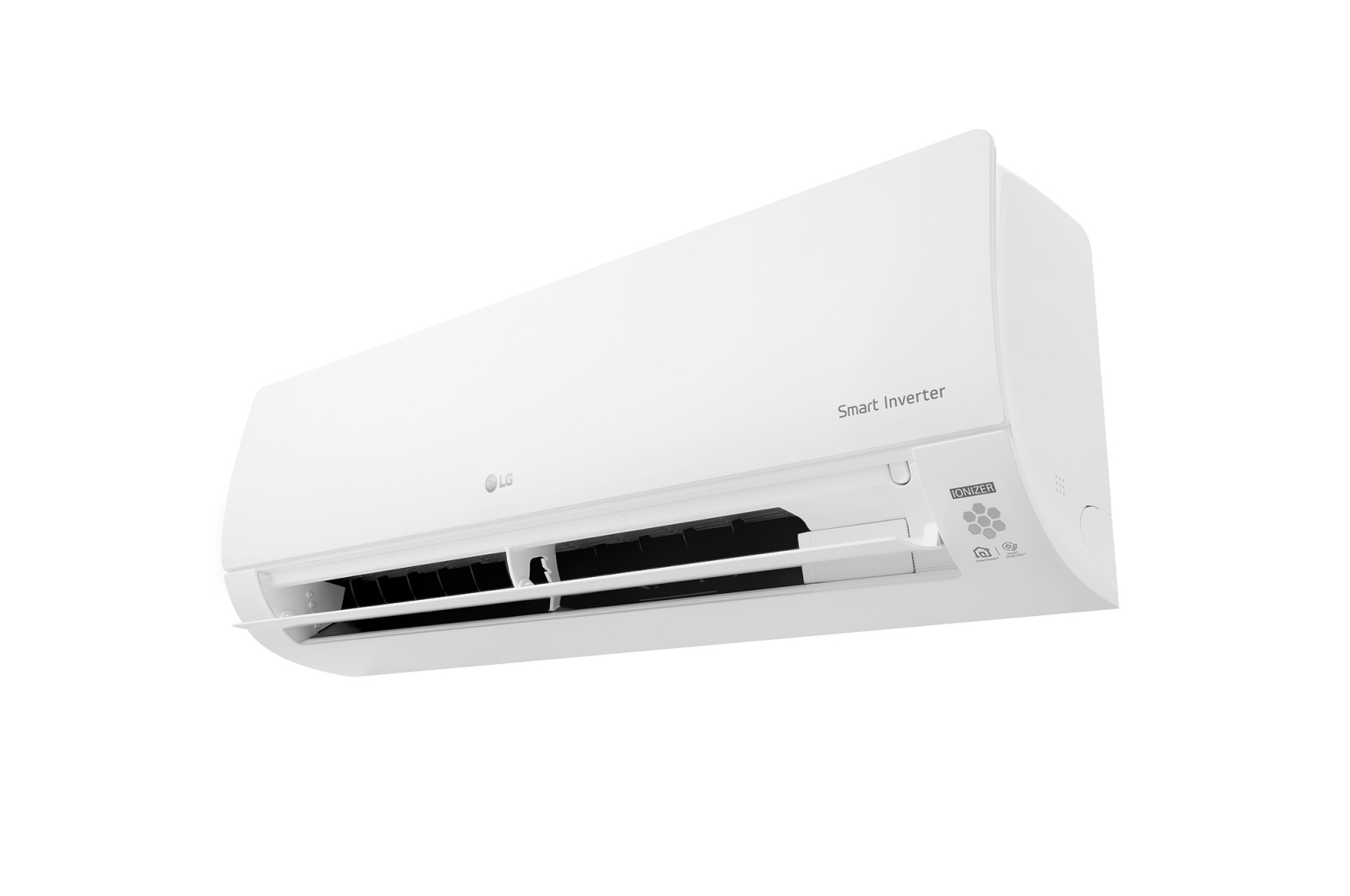

• Indoor: WH24SLN-18

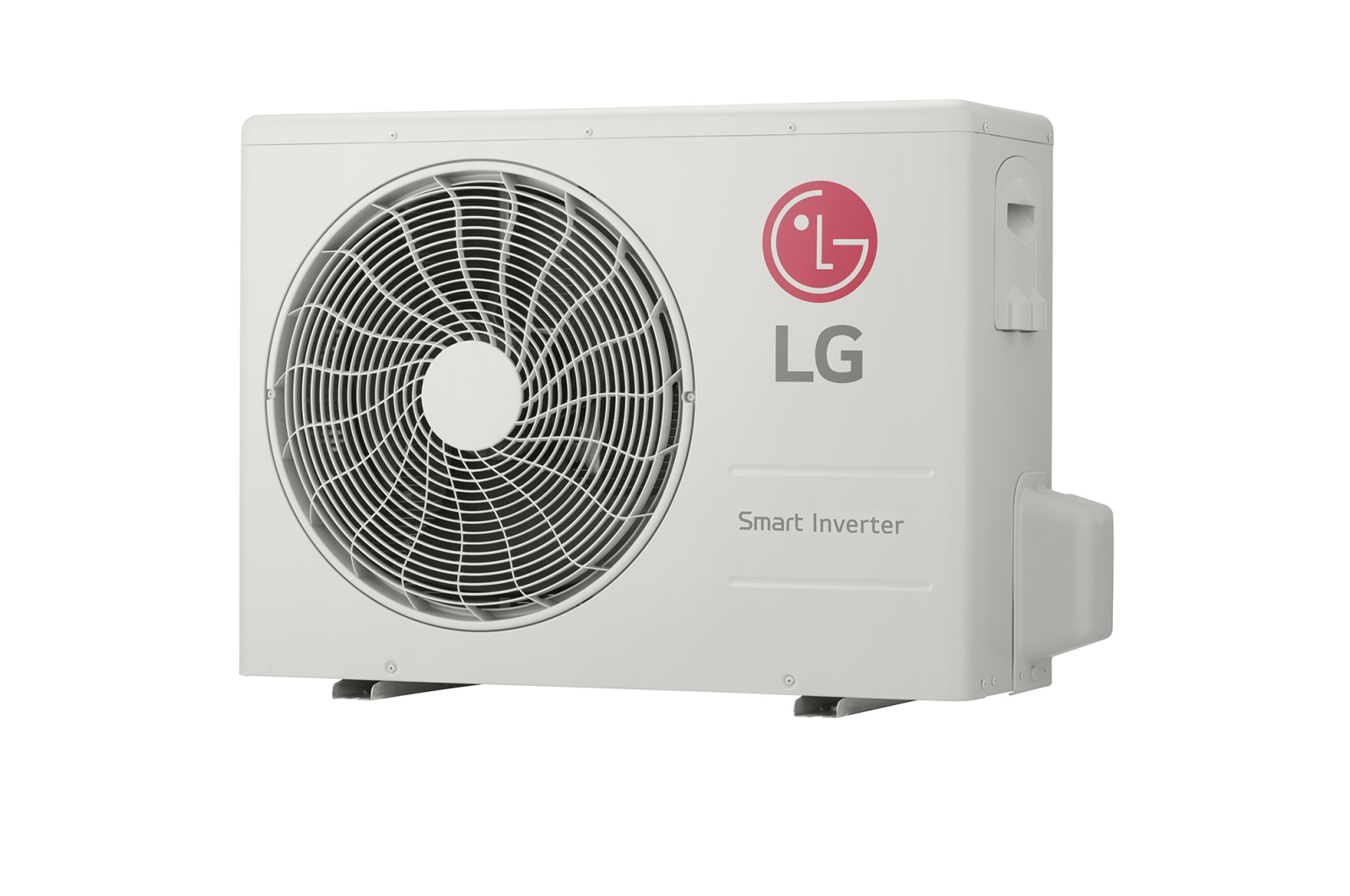

• Outdoor: WH24SLU-18

Technical

• Refrigerant Charge (R32) at 7.5m: 1750 g
• Pipe Run (Min / Max) (max elevation 10m): 3 m / 30 m
• Circuit Breaker Size: 240 Volt 25 Amps
• Additional Refrigerant (g/meter): 20 (Additional refrigerant required after 12.5m of piping)
• Operating Range (Outdoor): Cooling -10 ~ 48°C Heating -10 ~ 24°C
• Pipe Size Connection (Ø): Liquid mm (inch) - 9.52 (3/8) Gas mm (inch) - 15.88 (5/8)
• Outdoor Sound Power Level² (SWL): 66 dB(A) (Sound Power Level specification is measured in a reverberation test room according to ISO 3741)

Energy Consumption

• Energy Rating (Heating): 3.5 Stars
• Energy Rating (Cooling): 3 Stars

Dimensions

• Indoor (W x H x D) = 1060 x 360 x 265mm 16.6 kg
• Outdoor (W x H x D) = 870 x 800 x 320mm 55 kg

Warranty

• 10 Year Inverter Compressor Parts Warranty
